ACETex® ES

Geotextiles

ACETex® ES- PP woven geotextiles with high tensile strength and low elongation

Reinforcement PP geotextile with exceptional filtration ability due to technical development

Highly applicable to subgrade stabilization and base reinforcement

Enhance safety, reliability and serviceability of paved and unpaved roadways

About


High-Strength PP Woven Geotextiles for Subgrade Stabilization and Base Reinforcement

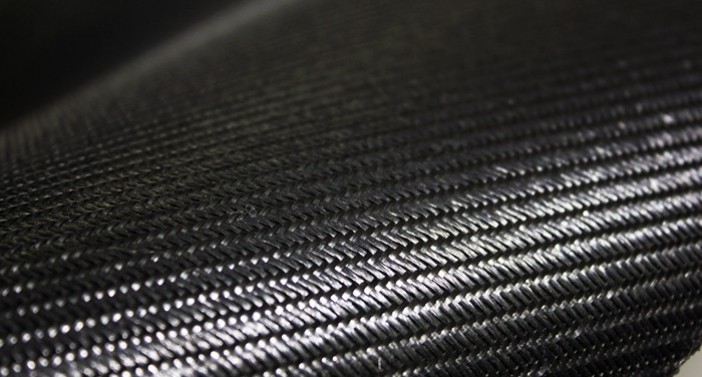

ACETex® ES are woven geotextiles fabricated with self-developed high tenacity polypropylene yarns and well-designed texture. ACETex® ES geotextiles perform exceptionally well in separation, filtration and reinforcement functions altogether to enhance the safety, reliability and serviceability of paved and unpaved roadways.

Function

Separation

Separation

Filtration

Filtration

Reinforcement

Reinforcement

Features

Outstanding filtration characteristics with high tensile strength and low elongation

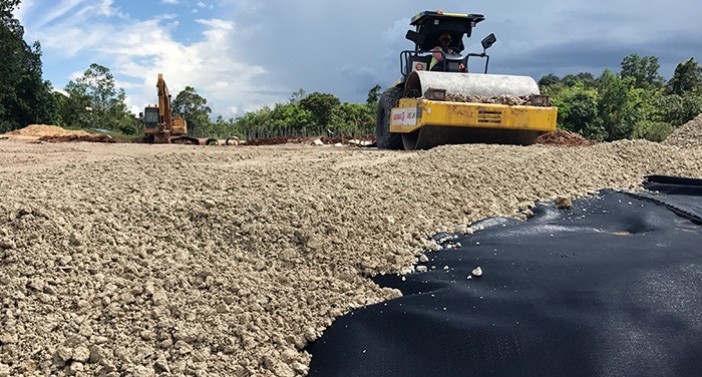

ACETex® ES geotextiles are commonly placed between road base and subgrade. With high tensile strength (biaxial tensile strengths up to 200 kN/m) and modulus of the geotextile, which provide structural stability and high CBR value, ACETex® ES geotextiles can distribute load uniformly at low elongation to increase the load-carrying capacity of the system. Furthermore, by increasing permeability with appropriate pore sizes, ACETex® ES geotextiles achieve separation and filtration simultaneously to stabilize the structure of the roadway system in the long term.


Extraordinary solution for subgrade stabilization and base reinforcement

There are some researches including numerical analyses and field investigations suggest that when geosynthetics be used for subgrade stabilization, geotextile products can outperform geogrids which are used to be thought as a better solution to roadway problems. When a geotextile can have integrated function of reinforcement, separation, and filtration, its advantage in subgrade stabilization application will reveal. However, there is one thing that makes ACETex® ES geotextiles special. As ACETex® ES geotextiles have similar performance in reinforcement and separation, their filtration characteristics will stand out. At the time extreme climate becomes more and more common, this product which could move more water while concurrently retaining more soil can be beneficial to the safety of long lasting engineering structure.


High quality, durability and cost effectiveness

The quality and durability of ACETex® ES geotextiles are ensured by numerous tests performed by accredited laboratories, the quality control and assurance process certified with ISO 9001. Moreover, ACETex® ES are relatively lightweight with high tensile strengths as compared to other similar products. ACETex® ES geotextile series are available in various tensile strengths and hydraulic properties to meet diverse project engineering needs.


In decades, ACE Geosynthetics are dedicated to developing and manufacturing geotextiles, providing wide technical services about geotechnical engineering. The experience and expertise accumulated during these activities are the key factors to make ACETex® ES a successful product, which are well-functional, reliable and durable. The benefits of using ACETex® ES are summarized as below:

Safety

Reduce rutting
Reduce inhomogeneous settlement
Improve traffic ability

Economical

Extend road service life
Reduce required base course materials
Lower maintenance costs

Applicability

Use in heavy rainfall/ high water table areas
Use with some difficult soils
Allow permeable pavement systems
